    Thin Ripples U Channel Glass Facade Window Curtain Wall Glass To Glass High Strength U Profile Glass Heat Preservation U Shaped Glass

    Ask Lasest Price
    Brand Name : OEM
    Model Number : XF-JZ001
    Certification : CCC/ISO9001/CE/SGCC
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20000 sqm per Day
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    Thin Ripples U Channel Glass Facade Window Curtain Wall Glass To Glass High Strength U Profile Glass Heat Preservation U Shaped Glass

    Thin Ripples Facade U Channel Glass Window Curtain Wall Glass


    U profile glass (also known as U channel glass) method is to use the first rolling post forming continuous production, because of its cross section is "U" type, so named.A wide variety of u-shaped glass, have ideal pervious to light quality, thermal insulation, heat preservation and high mechanical strength, not only widely used and the construction is simple, and has a unique architectural and decorative effect, and can save a lot of light metal profiles.


    • Specification

    Width

    (mm)


    Flange Height

    (mm)

    Glass thickness

    (mm)

    Max.Length

    (mm)

    Weight (single layer)(KG/M2)

    232mm
    262mm
    332mm

    60mm7mm6000mm25.43KG/M2
    24.5KG/M2
    23.43KG/M2

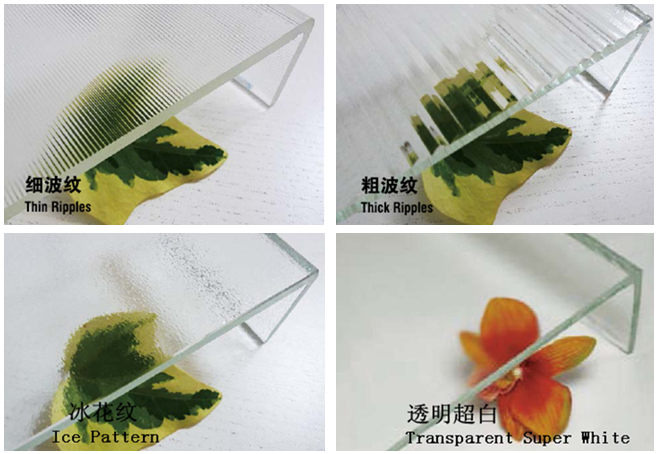

    Surface embossing types

    Transparent super white, ice pattern and ripple (thick ripple and thin ripple), special patterns can be produced as per customers' requirements.

    Glass coating

    Low radiation, sky blue, ceramic color, sand blasting process, etc.




    Type


    Light transmittance
    single wing

    Light transmittance

    double wing

    Heat transfer coefficient

    single wing


    U profile glass
    Ordinary fine lines

    88%80%4.9W/m2k

    Type

    Heat transfer coefficient

    double wing

    Sound insulation

    capacity

    single wing

    Sound insulation capacity

    double wing


    U profile glass
    Ordinary fine lines

    2.35W/m2k27db38db


    Advantages of U profile glass
    1. Light weight, reduce building its own weight, the shapes of light can increase building usable floor area.
    2. Sound insulation, heat insulation, improving the environment to save energy. U-profile glass in terms of reducing building energy consumption is a kind of ideal curtain wall / building glass windows materials.
    3. Safety, corrosion resistance, pervious to light the ideal form of wall materials, building glass windows.
    4. Easy construction, economical and practical.
